Reinforcement Learning (요약)

1. Difference from other ML paradigms

• There is no supervisor, only a reward signal
• Feedback is delayed, not instantaneous
• Time really matters (sequential, non i.i.d. data)
• Agent’s actions affect the subsequent data it receives

2. Reward

• Reward $R_t$ : a scalar feedback signal
• Agent’s job is to maximize cumulative reward
• Reward hypothesis : all goals can be described by the maximization of expected cumulative reward

3. Sequential Decision Making

• Goal: select actions to maximize total future reward
• Reward may be delayed
• It may be better to sacrifice immediate reward to gain more long-term reward (greedy $\leftrightarrow$ optimal)

4. RL Agent

• Policy: agent’s behavior function
• Map from state to action
• Deterministic policy : $a = \pi (s)$
• Stochastic policy : $\pi (a|s) = P[A_t = a | S_t = s]$
• Value function: how good is each state and/or action
• Prediction of future reward. Evaluate the goodness/badness of states
• State-Value function $$v_{\pi}(s) = E_{\pi} [R_{t+1} + \gamma R_{t+2} +\gamma^2 R_{t+3} + \cdots | S_t = s]$$
• Reward : Immediate payoff (number)
• Value : Future payoff
• Model: agent’s representation of the environment
• A model predicts what the environment will do next
• $P$ : predicts the next state $$P_{ss^{\prime}}^a = P[S_{t+1} = s^{\prime} | S_t = s, A_t = a ]$$
• $R$ : predicts the next (immediate) reward $$R_s^a = E[R_{t+1} | S_t = s, A_t = a]$$

5. Learning and Planning

• Reinforcement Learning
• The environment is initially unknown
• The agent interacts with the environment
• The agent improves its policy
• Planning
• A model of the environment is known
• The agent performs computations with its model (without any external interaction)
• The agent improves its policy
• a.k.a. deliberation, reasoning, introspection, pondering, thought, search

6. Exploration and Exploitation

• Reinforcement learning is like trial-and-error learning
• Exploration : Finds more information about the environment
• Exploitation : Exploits known information to maximize reward

7. Markov Decision Process (MDP)

• Environment is fully observable
• Current state completely characterizes the process
• Almost all RL problems can be formalized as MDPs
• Markov Property
• The future is independent of the past given the present
• A state $S_t$ is Markov if and only if $$P[S_{t+1} | S_t] = P[S_{t+1} | S_1,\cdots , S_t]$$
• Once the state is known, the history may be thrown away

• State Transition Matrix
• For a Markov state $s$ and successor state $s^\prime$, the state transition probability is defined by $$P_{ss^\prime} = P[S_{t+1} = s^\prime | S_t = s]$$
• State transition matrix P : transition probabilities from all states $s$ to all successor states $s^\prime$ $$P = \begin{bmatrix}P_{11} & \cdots &P_{1n}\\ \vdots & \ddots & \vdots \\ P_{n1} & \cdots &P_{nn} \end{bmatrix}$$
• Each row of the matrix sums to 1

• Markov Process
• Memoryless random process
• 미래의 State가 과거의 State에 의존하지 않음
• A Markov Process (or Markov Chain) is a tuple $<S,P>$
• $S$ is a (finite) set of states
• $P$ is a state transition probability matrix : $P_{ss^\prime} = P[S_{t+1} = s^\prime | S_t = s]$

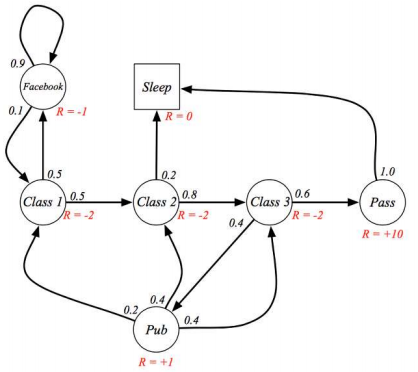

• Markov Reward Process
• is a Markov chain with values
• A Markov Reward Process is a tuple $<S,P,R,\gamma >$
• $S$ is a (finite) set of states
• $P$ is a state transition probability matrix : $P_{ss^\prime} = P[S_{t+1} = s^\prime | S_t = s]$
• $R$ is a reward function : $R_s = E[R_{t+1} | S_t = s]$
• $\gamma$ is a discount factor : $\gamma \in [0,1]$

• Return $G_t$
• Return is the total discounted reward from time-step $t$ $$G_t = R_{t+1} + \gamma R_{t+2} +\gamma^2 R_{t+3} + \cdots = \sum_{k=0}^\infty \gamma^kR_{t+k+1}$$
• The discount $\gamma \in [0,1]$ is the present value of future rewards
• $\gamma$ close to $0$ leads to $immediate$ evaluation
• $\gamma$ close to $1$ leads to $far\;sighted$ evaluation

• Value Function $v(s)$
• Value Function gives the long-term value of state $s$
• The state value function $v(s)$ of an MRP is the expected return starting from state $s$ $$v(s) = E[G_t|S_t = s]$$
• Finding optimal value function is the ultimate goal of the reinforcement learning

• Bellman Equation

$$\begin{align*} v(s) &= E[G_t | S_t = s] \\ &= E[R_{t+1} + \gamma R_{t+2} +\gamma^2 R_{t+3} + \cdots| S_t = s] \\ &= E[R_{t+1} + \gamma (R_{t+2} +\gamma R_{t+3} + \cdots ) | S_t = s] \\ &= E[R_{t+1}+\gamma G_{t+1} | S_t = s] \\ &= E[R_{t+1}+\gamma v(S_{t+1}) | S_t = s] \end{align*}$$

• Current state value = current reward + next state value


$$v(s) = R_s + \gamma \sum_{s^\prime \in S} P_{ss^\prime} v(s^\prime)$$

• Bellman Equation을 통해 State value function의 최적값을 구할 수 있다
• Bellman Equation is a linear equation, can be solved directly $$v = R +\gamma Pv$$ $$(1-\gamma P) v = R$$ $$v = (1-\gamma P)^{-1} R$$
• Computational complexity is $O(n^3)$ for $n$ states
• Direct solution only possible for small MRPs
• There are many iterative methods for large MRPs
• Dynamic programming
• Monte-Carlo evaluation
• Temporal-Difference learning

7. Markov Decision Process (cont.)

• Markov reward process with decisions
• Markov Decision Process is a tuple $<S,A,P,R,\gamma >$
• $S$ is a (finite) set of states
• $A$ is a finite set of actions
• $P$ is a state transition probability matrix : $P_{ss^\prime}^a = P[S_{t+1} = s^\prime | S_t = s, A_t = a]$
• $R$ is a reward function : $R_s^a = E[R_{t+1} | S_t = s, A_t = a]$
• $\gamma$ is a discount factor : $\gamma \in [0,1]$

• Policies
• Policy $\pi$ is a distribution over actions given states $$\pi (a|s) = P[A_t = a | S_t = s]$$
• Mapping between current state and action
• A policy fully defines the behavior of an agent
• MDP policies depend on the current state (not the history)
• Policies are stationary (time-independent)

• Value Function
• State-Value function $v_{\pi}(s)$ : expected return starting from state $s$, and then following policy $\pi$ $$v_{\pi}(s) = E_{\pi}[G_t | S_t = s]$$
• Action-Value function $q_{\pi}(s,a)$ : expected return starting from state $s$, taking action $a$, and then following policy $\pi$ $$q_{\pi}(s,a) = E_{\pi}[G_t | S_t = s, A_t= a]$$

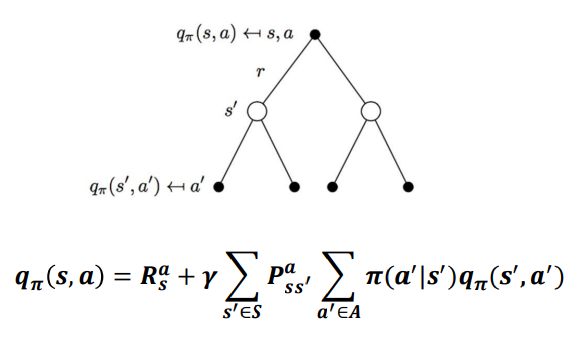

• Bellman Expectation Equation
• $v(s)$ is related with $v(s^\prime)$
• $q(s,a)$ is related with $q(s^\prime ,a^\prime )$

• Bellman Expectation Equation (cont.)
• The Bellman expectation equation can be expressed concisely using the induced MRP

• Optimal Value function
• The optimal state-value function $v_*(s)$ is the maximum value function over all policies $$v_*(s) = \max_\pi v_\pi (s)$$
• The optimal action-value function $q_*(s)$ is the maximum action-value function over all policies $$q_*(s,a) = \max_\pi q_\pi (s,a)$$

• Optimal Policy
• Define a partial ordering over policies $$\pi \geq \pi^\prime \;\;if\;\; v_\pi (s) \geq v_{\pi^\prime} (s),\;\;\forall s$$
• ....... 나중에 정리...
